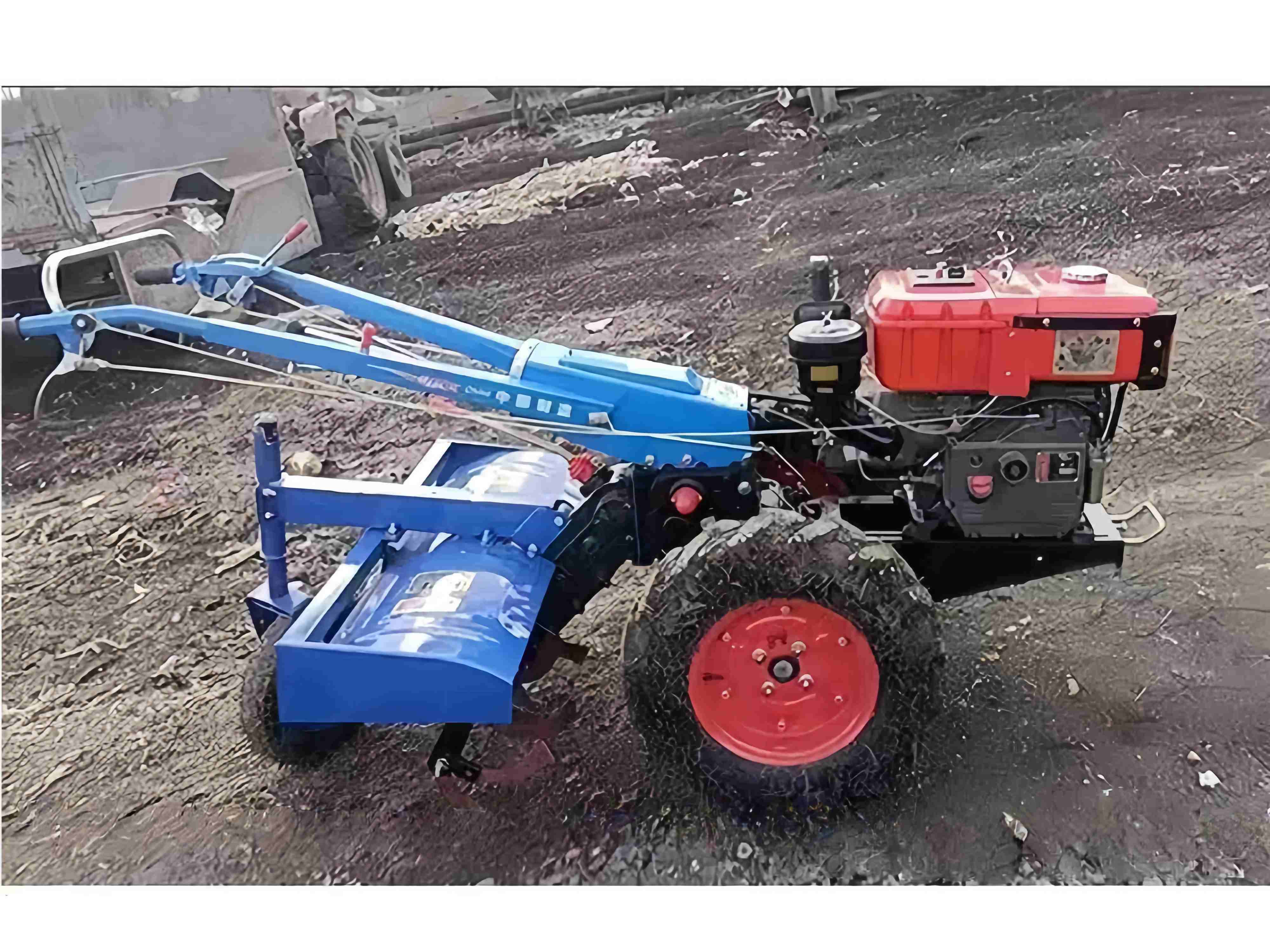

10 HP Maneuverable Tractor: Improved Power for Medium-Sized Farms
The 10 HP manned tractor is the perfect choice for farmers with medium-sized farms or demanding crops. With increased power (10 HP / 7.35 kW), it excels at intermediate tasks such as deep tillage, mechanized seeding, and medium-load transport (up to 800 kg). Its compact design (2.17 x 0.845 x 1.15 m) makes it versatile on flat and slightly sloping terrain.
With a single-cylinder (water-cooled) four-stroke engine, it offers a combination of power and fuel economy. It can be coupled with advanced implements such as reversible plows, disc rotors, and combined seed drills (with integrated fertilizer). Ideal for crops such as soybeans, wheat, or corn in regions such as Michoacán or Veracruz.
The 6-speed forward + 2-speed reverse transmission ensures adaptability: from precise tasks (such as pulverizing the soil) to rapid movement between fields. With a structural weight of 290 kg and 600-12 tires, it offers stability without excessive soil compaction. A worthwhile investment for your farm's productivity!
Key Features
- Power: 10 HP (7.35 kW), single-cylinder water-cooled four-stroke engine with low diesel consumption.
- Compact Design: Dimensions 2170 x 845 x 1150 mm, weight 290 kg, easy to maneuver on narrow paths and sloped terrain.
- Transmission: 6 forward gears + 2 reverse gears, dual friction clutch for better control.
- Traction: Approx. 1800-2200 N, compatible with implements like reversible plows, rotary tillers, and combined seeders.
Main Applications
1. Advanced Soil Preparation
- Deep Tillage: With reversible plow, eliminates persistent weeds and improves soil aeration for crops like soybeans or wheat.
- Soil Pulverization: Combined with disc rotary tiller, achieves fine, leveled soil in less time.
2. Efficient Planting & Harvesting
- Mechanized Seeder: Applies seeds and fertilizer in straight lines, reducing waste.
- Light Harvester: Adaptable for small corn or rice crops in medium plots.
3. Transportation & Maintenance
- Medium Loads: Transports up to 800 kg of fertilizer, tools, or harvest with attached trailer.
- Integrated Irrigation: Can be coupled with water pumps for drip irrigation in technical orchards.
Technical Parameters
Parameter |
8 HP Walk-Behind Tractor |
10 HP Walk-Behind Tractor |
12 HP Walk-Behind Tractor |
Power |
Approx. 5.88 kW |
7.35 - 8.8 kW |
Approx. 8.8 kW |
Traction Force |
Approx. 1700 N |
Approx. 1900 N |
Approx. 2200 N |
Dimensions (LxWxH) |
2170*890*1150 mm |
2170*845*1150 mm |
2170*845*1150 mm |
Minimum Clearance |
210 mm |
210 mm |
220 mm |
Structural Weight |
230 kg |
290 kg |
290 kg |
Clutch Type |
Single/Double Disc Friction |
Single/Double Disc Friction |
Single/Double Disc Friction |
Steering Type |
Gear Type |
Gear Type |
Gear Type |
Brake Type |
Internal Annular |
Internal Annular |
Internal Annular |
V-Belt |
Two B1800 belts |
Two B1800 belts |
Two B1800 belts |
Tire Model |
6.00 - 12 |
Type 600 - 12 |
Type 600 - 12 |
Track Width |
640 - 680 mm |
680 - 750 mm |
680 - 750 mm |
Tractor Type |
Traction & Drive Tractor |
Drive & Traction Tractor |
Drive & Traction Tractor |
Number of Gears (Fwd/Rev) |
6.00-12 |
6.00-12 |
6.00-12 |
Engine Type |
Horizontal single-cylinder, |
Horizontal single-cylinder, water-cooled four-stroke |
Horizontal single-cylinder, water-cooled four-stroke |
Engine Model |
- |
HZ190/192/195 |
190/192/195 |

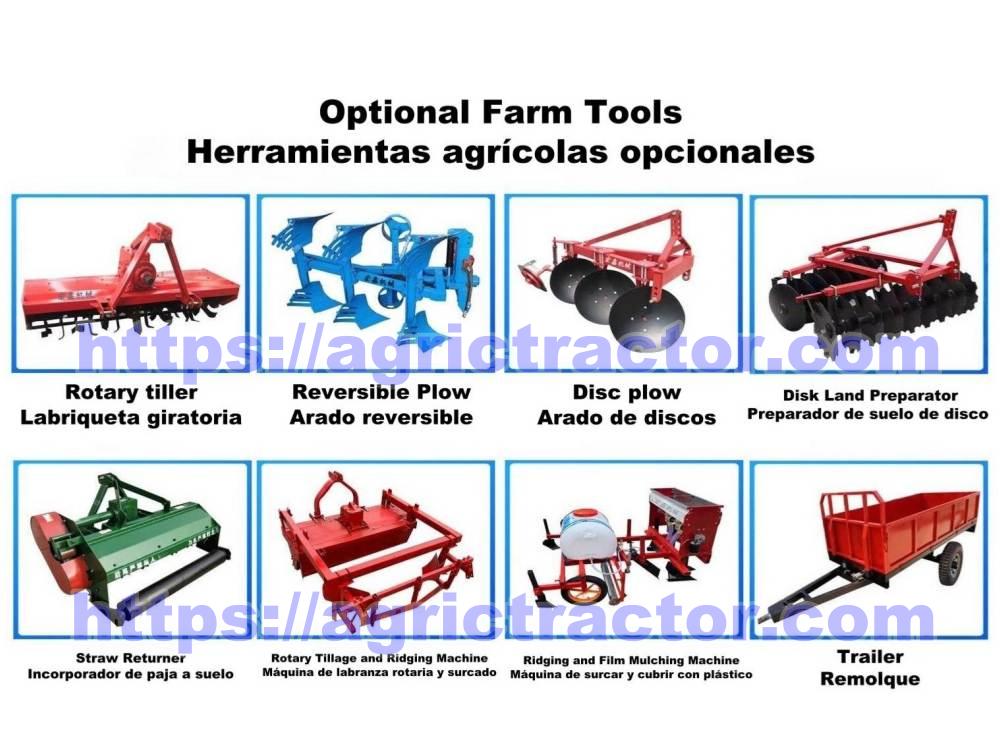

Compatible with various agricultural implements
Why Choose Our 10 HP Tractor?
- Adaptability: Works in traditional and semi-technical farming, from valleys to mountainous regions.
- Durability: Anti-rust components and sun-resistant paint designed for the local climate.
- Cost Efficiency: Low maintenance with simple engine and easy-to-find parts in local market.
Special Offers
- Interest-Free Financing: Available for farmers in Michoacán, Veracruz and Guanajuato.
- Free Implement Included: Receive a disc soil preparer with tractor purchase.
- 24-Hour Technical Service: Nationwide support through affiliate workshop network.
