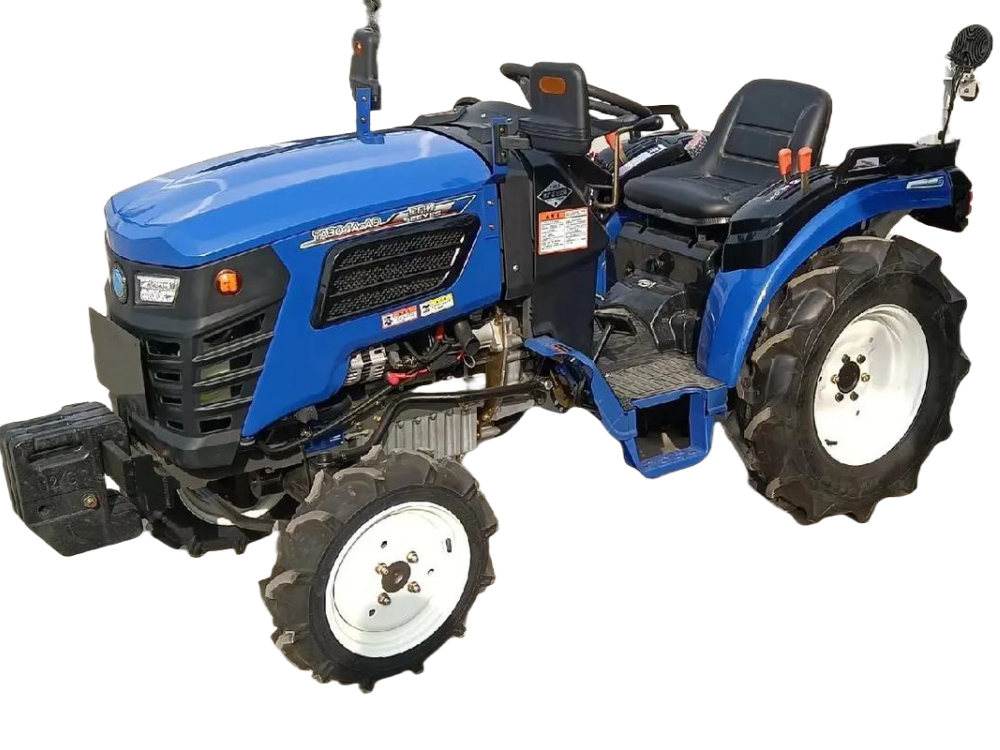

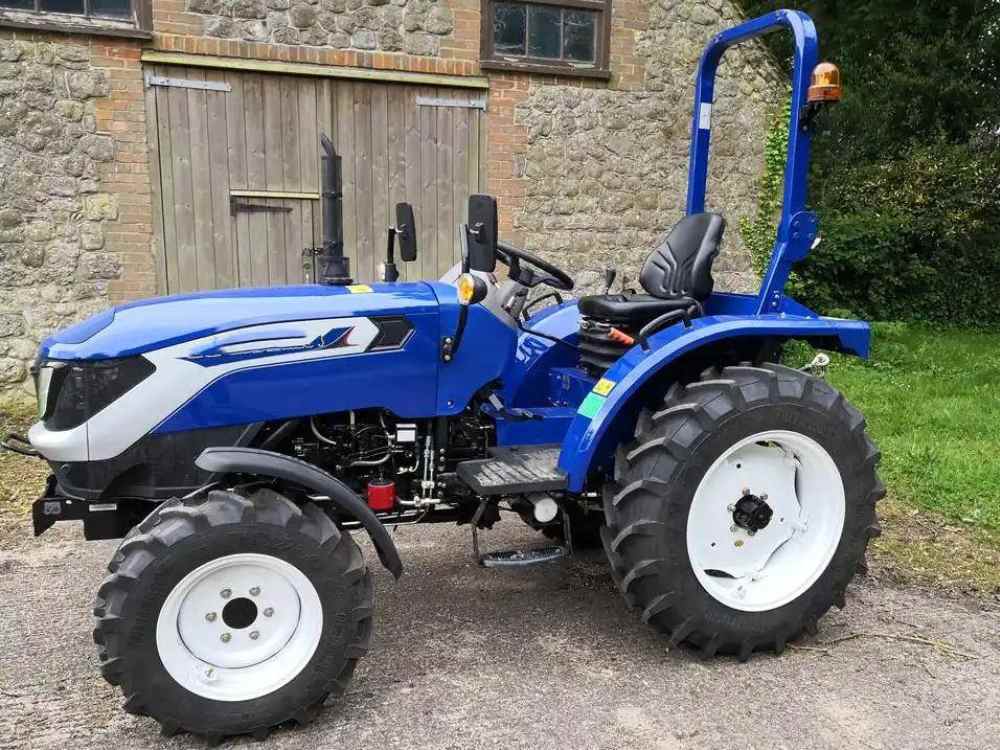

25hp China Subcompact Tractor – Ideal for Small-Scale Farming and Garden Work
Discover the high-quality 25hp subcompact tractor model AL252, designed to perform agricultural, gardening and light construction tasks efficiently. With powerful engines, compact designs, and versatile functionality, these tractors are perfect for homeowners, small farmers, and landscaping professionals. Whether you need to plow fields, mow lawns, or haul goods, our subcompact tractors offer unmatched performance, durability, and fuel efficiency.
Key features include 4WD capability, diesel or gasoline engines, easy-to-use controls, and compatibility with various accessories. Ideal for navigating tight spaces and performing tasks in smaller areas, these tractors are designed to handle a wide range of agricultural and outdoor jobs.
Product Introduction
Subcompact Tractors From China: Your Ultimate Guide
Key features
■ n Smoother, more flexible steering
Hydraulic power steering system, four-wheel drive models can equip full hydraulic steering, that means your steering will be smoother and more flexible, just enjoy your driving. Compact body and small turning radius make it easy to operate, 2 wheel drive 2.8m, 4 wheel drive 3m.
Hydraulic power steering system, four-wheel drive models can equip full hydraulic steering, that means your steering will be smoother and more flexible, just enjoy your driving. Compact body and small turning radius make it easy to operate, 2 wheel drive 2.8m, 4 wheel drive 3m.
■ n Differential lock, superior off-road performance
The differential lock provides better off-road performance.
Chassis designed in mature technology gives it excellent durable performance.
Anti-rollover safety frame can effectively ensure the safety of the tractor when overturning.
The differential lock provides better off-road performance.
Chassis designed in mature technology gives it excellent durable performance.
Anti-rollover safety frame can effectively ensure the safety of the tractor when overturning.
■ n Classic match
Transmission with 8 forward gears + 2 reverse gears (sliding gear change). You can choose to install the inching structure that could double the number of gears and provide you with better traction. Another transmission with 10 forward gears + 2 reverse gears (clutch shift) is optional. You can also choose to install the drag gear structure so that it becomes 20 forward + 4 reverse gears and provide you with better traction. The driving speed covers the range of 0.32-38Km/h, meets the various demands of field work and road transportation.
Transmission with 8 forward gears + 2 reverse gears (sliding gear change). You can choose to install the inching structure that could double the number of gears and provide you with better traction. Another transmission with 10 forward gears + 2 reverse gears (clutch shift) is optional. You can also choose to install the drag gear structure so that it becomes 20 forward + 4 reverse gears and provide you with better traction. The driving speed covers the range of 0.32-38Km/h, meets the various demands of field work and road transportation.
■ HN Hydraulic Outlet, Excellent Versatile Performance
Equipped with anti-roll safety frame, which can effectively ensure the safety of the driver's body when the tractor overturns.
Equipped with awnings, your work is no longer limited by the weather.
Equipped with anti-roll safety frame, which can effectively ensure the safety of the driver's body when the tractor overturns.
Equipped with awnings, your work is no longer limited by the weather.
Parameters:
Technical Parameters of Allian TB Series Tractors Model 504-1(G4) 704-1(G4) 804-1(G4) 904-1(G4) 1004-1(G4) Drive Type 4X4 Wheel Drive 4X4 Wheel Drive 4X4 Wheel Drive 4X4 Wheel Drive 4X4 Wheel Drive Outside Size Length (mm) 4070 4030 4100 4100 4100 Width (mm) 1820 1830 1830 1830 1830 Height(mm) 2710 (Cabin).2580 (Safety Frame) 2740(Cab) 2750(Cab).2800(Safety Frame) 2750(Cab).2800(Safety Frame) 2750(Cab) Wheelbase Front wheel 1200, 1250, 1300, 1350, 1400.1450 1260, 1360, 1460, 1560 1300, 1400, 1510, 1600 1300, 1400, 1510, 1600 1300, 1400, 1510, 1600 Rear wheel 1200~1500 1260~1660 1300~1700 1300~1700 1300~1700 Wheelbase (mm) 2080 2090 2050 2050 2050 Min. Ground Clearance (mm) 365 370 390 390 390 Minimum Operating Weight (kg) 2700(Cab)
2500(Safety Frame) 2800(Cab) 2600(Cab)
2700(Safety Frame) 2720(Cab)
2820(Safety Frame) 3250(Cab) Engine Engine Model YN38NKF4(G4) YN38NDE4(G4) YN38TDE4(G4) YN38TBE4(G4) YN38TAF4(G4) Guy Straight Line, Water Cooled Straight Line, Water Cooled Straight Line, Water Cooled Straight Line, Water Cooled Straight Line, Water Cooled Rated Power 36.8 51.5 59 66.2 74 Fuel Diesel Diesel Diesel Diesel Diesel Tyres Front wheel 8.3-24 8.3-24 9.5-24 9.5-2 9.5-2 Rear wheel 11-32 11-32 14.9-30 14.9-30 14.9-30 Clutch Dry plate, double plate, double action Dry plate, double plate, double action Dry plate, double plate, double action Dry plate, double plate, double action Dry plate, double plate, double action Router hydraulic steering hydraulic steering hydraulic steering hydraulic steering hydraulic steering Transmission 12F+12R 12F+12R 12F+12R 12F+12R 12F+12R Type of suspension device Rear three-point suspension, Type 2 or Type 1 Rear three-point suspension, Type 2 Rear three-point suspension, Type 3 Rear three-point suspension, Type 4 Rear three-point suspension, Type 5 ESP Rotation speed 540/760 540/760 540/760 or 540/1000 540/760 540/760
Parameters:
| Technical Parameters of Allian TB Series Tractors | |||||||
| Model | 504-1(G4) | 704-1(G4) | 804-1(G4) | 904-1(G4) | 1004-1(G4) | ||
| Drive Type | 4X4 Wheel Drive | 4X4 Wheel Drive | 4X4 Wheel Drive | 4X4 Wheel Drive | 4X4 Wheel Drive | ||
| Outside Size | Length (mm) | 4070 | 4030 | 4100 | 4100 | 4100 | |
| Width (mm) | 1820 | 1830 | 1830 | 1830 | 1830 | ||
| Height(mm) | 2710 (Cabin).2580 (Safety Frame) | 2740(Cab) | 2750(Cab).2800(Safety Frame) | 2750(Cab).2800(Safety Frame) | 2750(Cab) | ||
| Wheelbase | Front wheel | 1200, 1250, 1300, 1350, 1400.1450 | 1260, 1360, 1460, 1560 | 1300, 1400, 1510, 1600 | 1300, 1400, 1510, 1600 | 1300, 1400, 1510, 1600 | |
| Rear wheel | 1200~1500 | 1260~1660 | 1300~1700 | 1300~1700 | 1300~1700 | ||
| Wheelbase (mm) | 2080 | 2090 | 2050 | 2050 | 2050 | ||
| Min. Ground Clearance (mm) | 365 | 370 | 390 | 390 | 390 | ||
| Minimum Operating Weight (kg) | 2700(Cab) 2500(Safety Frame) | 2800(Cab) | 2600(Cab) 2700(Safety Frame) | 2720(Cab) 2820(Safety Frame) | 3250(Cab) | ||
| Engine | Engine Model | YN38NKF4(G4) | YN38NDE4(G4) | YN38TDE4(G4) | YN38TBE4(G4) | YN38TAF4(G4) | |
| Guy | Straight Line, Water Cooled | Straight Line, Water Cooled | Straight Line, Water Cooled | Straight Line, Water Cooled | Straight Line, Water Cooled | ||
| Rated Power | 36.8 | 51.5 | 59 | 66.2 | 74 | ||
| Fuel | Diesel | Diesel | Diesel | Diesel | Diesel | ||
| Tyres | Front wheel | 8.3-24 | 8.3-24 | 9.5-24 | 9.5-2 | 9.5-2 | |
| Rear wheel | 11-32 | 11-32 | 14.9-30 | 14.9-30 | 14.9-30 | ||
| Clutch | Dry plate, double plate, double action | Dry plate, double plate, double action | Dry plate, double plate, double action | Dry plate, double plate, double action | Dry plate, double plate, double action | ||
| Router | hydraulic steering | hydraulic steering | hydraulic steering | hydraulic steering | hydraulic steering | ||
| Transmission | 12F+12R | 12F+12R | 12F+12R | 12F+12R | 12F+12R | ||
| Type of suspension device | Rear three-point suspension, Type 2 or Type 1 | Rear three-point suspension, Type 2 | Rear three-point suspension, Type 3 | Rear three-point suspension, Type 4 | Rear three-point suspension, Type 5 | ||
| ESP | Rotation speed | 540/760 | 540/760 | 540/760 or 540/1000 | 540/760 | 540/760 | |
