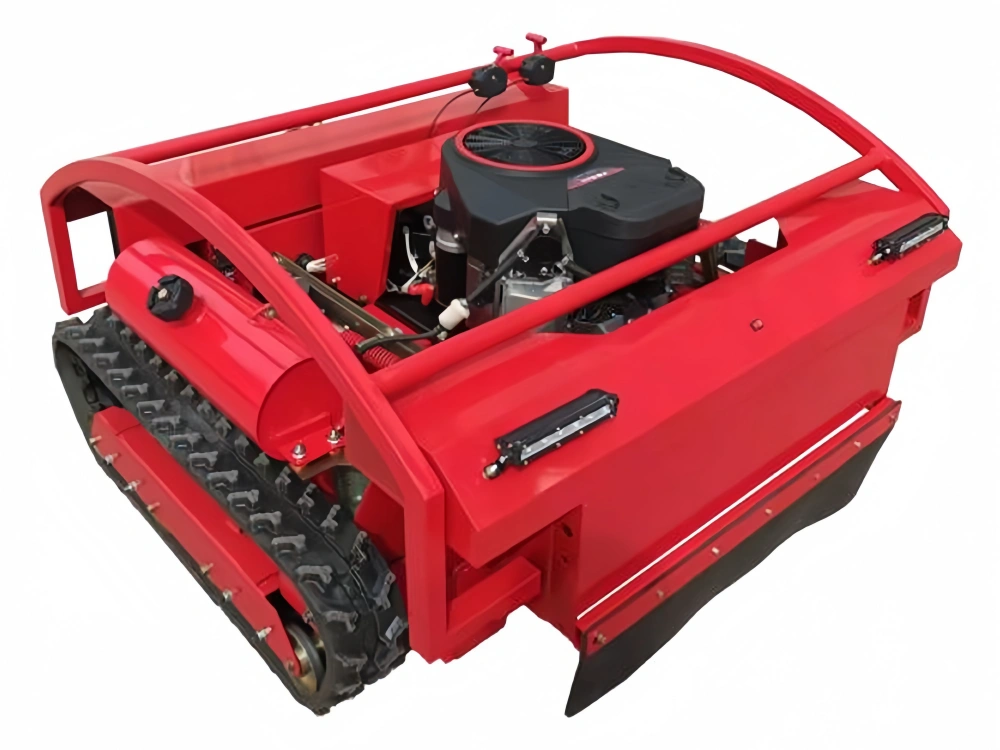

ALK130-2-2P remote-controlled lawn mower (twin-cylinder engine)

1. Power & Performance

Hybrid gas-electric engine with auto-recharging system. CNC-grade brushless DC motor delivers efficient, long-term operation. Marine-grade generator ensures ultra-low maintenance.

2. Safety & Durability

Automatic braking for steep slopes. Industrial 200m remote control with intuitive interface. Steel-reinforced rubber tracks and tank-style chassis handle challenging terrain (dams, orchards, solar farms).

3. Precision & Adaptability

Adjustable cutting height (3-15cm) and speed control. Optimized for solar farms，hills, and large-scale landscaping projects.

Inquiry

Configuration and Features

Power System: Gasoline engine with hybrid oil-electric technology, featuring an integrated power generation and supply system for automatic recharging during operation.
Motor: CNC machine-grade DC brushless motor, energy-efficient, durable, and ideal for continuous long-term use.
Safety Mechanism: Automatic braking system engages when parked, ensuring stability on steep slopes.
Generator: Marine-grade generator with ultra-low failure rate and extended service life.
Control System: Industrial-grade remote control with intuitive operation, low failure rate, and 200m operating range.
Track Design: Internal steel frame and wire reinforcement with external engineering rubber, providing exceptional wear resistance.
Chassis & Mobility: Reinforced low-profile tank-style chassis optimized for steep inclines, trenches, and challenging terrains. Ideal for: dams, orchards, hilly areas, terraced fields, solar farms, and landscaping.
Adjustability: Adjustable cutting height (3-15 cm) and remote-controlled cutting speed.

Technical parameters

serial number	The name of the project		unit	Parameter value
1	host	Model		ALK130-2-2P
		Dimensions (L×W×H)	mm	13401685760
		Structural quality	kg	413
		Track width	mm	120
2	Supporting power	Manufacturers		Loncin General Dynamics Co., Ltd
		Model name		LC2P80F
		Structural type		Parallel bars four-stroke
		Rated power	Ps	27
		Rated speed	r/min	3600
		Type of fuel		gasoline
		Average fuel consumption	g/h/kw	≥295
		Displacement	cc	764
3	Travel motor	Rated power	Kw	2
		Operating voltage	V	48
		rotate speed	r/min	1000~3000
		Walking speed	Km/h	0~5 adjustable
		Maximum remote control distance	m	200
		The working slope	Degree ·	≤50
4	dynamo	Rated power	kw	5
5	accumulator	Battery type		Dry batteries
		Walking battery voltage	V	48
		Walking battery capacity	Ah	20*4
		Charging type		The generator is automatically charged when it is working
6	Matching mowing knives	Number of knives	group	2 sets (2 pieces/set)
		Tool speed	r/min	2500~3000
		Mowing width	mm	1300
		Grass height	mm	30~150 adjustable
7	Equipped with a transport bucket	Dimensions (L×W×H)	mm	1340×1790×1380
7	Equipped with a transport bucket	Load capacity	Kg	≤400
8	It is equipped with an air-fed sprayer	Dimensions (L×W×H)	mm	1340×1790×1380
		Liquid volume	catty	400
		Spray amplitude (unilateral)	m	4-5
