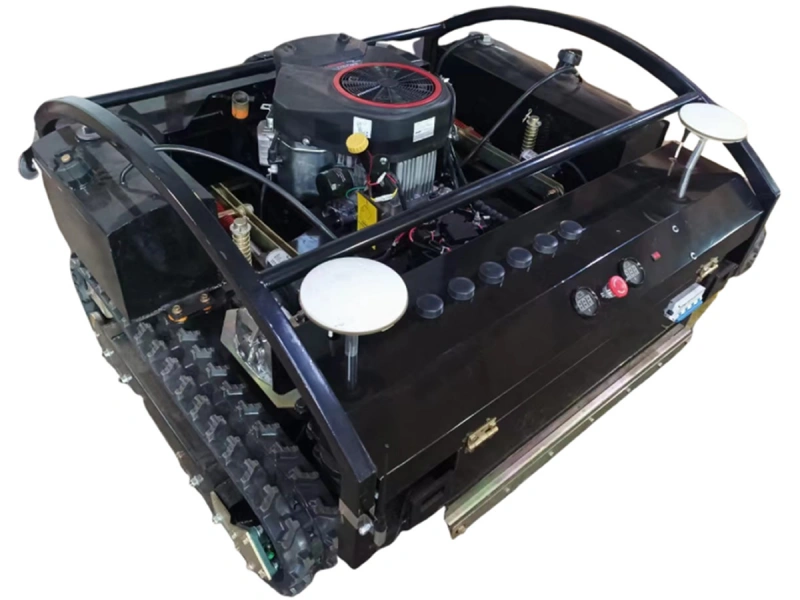

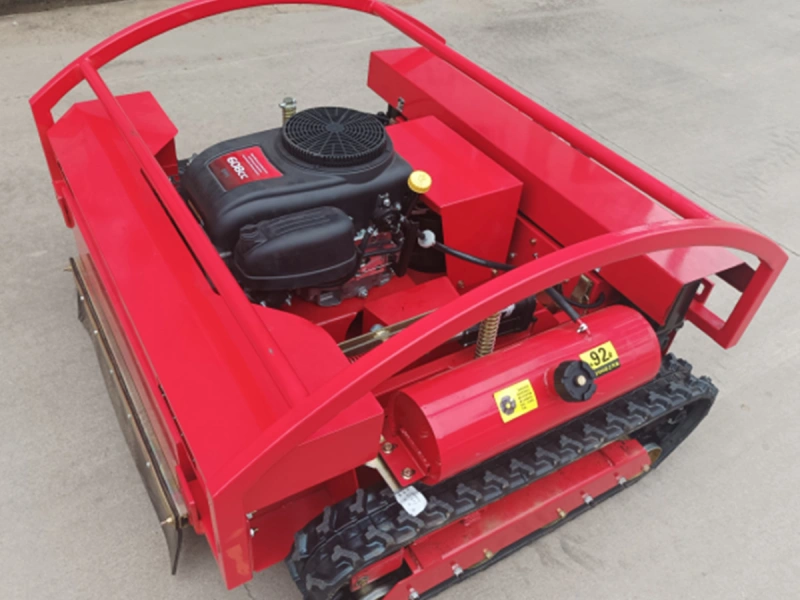

Configuration & Features
(1) The power adopts Loncin gasoline engine, oil-electric hybrid, with its own power generation and power supply system, and automatic charging during the working process.
(2) The motor adopts a brushless DC motor of CNC machine tools, which is energy-saving and durable, and suitable for long-term work.
(3) Automatic braking when stopping, suitable for steep slope operation.
(4) The generator is a marine-grade generator, with a very low failure rate and long life.
(5) The control adopts industrial remote control device, which is simple to operate, low failure rate, and the remote control distance is 200 meters.
(6) The track is made of internal steel frame steel wire, and the external engineering rubber is designed, which is wear-resistant and durable.
(7) Strengthened chassis, low fuselage, tank-like design, climbing and ditching are strengths; Ideal for: embankments, orchards, hills, terraces, photovoltaics, and green mowing.
(8) Adjustment: The height of the grass is 3-15 cm, and the mowing speed is adjustable by remote control.
Technical parameters
| serial number | The name of the project | unit | Parameter value |
1 | host | Model | | ALK130-2-2P (GPS) |
Dimensions (L×W×H) | mm | 1340*1685*760 |
Structural quality | kg | 413 |
Track width | mm | 120 |
2 | Supporting power | Manufacturers | | Loncin General Dynamics Co., Ltd |
Model name | | LC2P80F |
Structural type | | Parallel bars four-stroke |
Rated power | Ps | 27 |
Rated speed | r/min | 3600 |
Type of fuel | | gasoline |
Average fuel consumption | g/h/kw | ≥295 |
Displacement | cc | 764 |
3 | Travel motor | Rated power | Kw | 2 |
Operating voltage | V | 48 |
rotate speed | r/min | 1000~3000 |
Walking speed | Km/h | 0~5 adjustable |
Maximum remote control distance | m | 200 |
The working slope | Degree | ≤50 |
4 | dynamo | Rated power | kw | 5 |
5 | accumulator | Battery type | | Dry batteries |
Walking battery voltage | V | 48 |
Walking battery capacity | Ah | 20*4 |
Charging type | | The generator is automatically charged when it is working |
6 | Matching mowing knives | Number of knives | group | 2 sets (2 pieces/set) |
Tool speed | r/min | 2500~3000 |
Mowing width | mm | 1300 |
Grass height | mm | 30~150 adjustable |
7 | Equipped with a transport bucket | Dimensions (L×W×H) | mm | 1340×1790×1380 |
Load capacity | Kg | ≤400 |
8 | It is equipped with an air-fed sprayer | Dimensions (L×W×H) | mm | 1340×1790×1380 |
Liquid volume | catty | 400 |
Spray amplitude (unilateral) | m | 4-5 |
Close-up brief description of the navigation system
Smarter, More Efficient, Easier
Unmanned Lawn Mowing Robot
Newly Upgraded, L4 Full Unmanned Autonomous Driving System
1. Supports multi-frequency satellite positioning systems such as Beidou and GPS, and adopts RTK positioning technology.
2. The positioning accuracy can reach ±2cm, and the straight-line walking accuracy is ±5cm, ensuring high-precision operations.
3. Supports map editing, path planning, autonomous navigation and operation control.
Supports Cloud Navigation Scheduling, Free Planning of Operation Paths
Simple User Operation:
Select Robot → Select Map → Start Operation
Professional Planning Services (Post-Sales Engineer Training):
Field Pointing → Edit Map → Store in Cloud → Push Map
Supports Multiple Sensors for Easy Intelligent Perception
1. Multiple sensors such as oil level sensors, travel sensors, and speed sensors provide guarantees.
2. Supports 4G network or digital radio, remote control, automatic start and stop, making it smarter and safer.
3. Supports ultra-high-definition cameras to automatically avoid obstacles for people and vehicles.
4. Optional base station with coverage of 20km operation area.
5. Optional point tool for self-service map planning services.
6. Optional visual remote control.
