Allian Agric's Disc Plough: Unclogging, Strong - Cutting Tools for Versatile Farmland Work

Allian Agric Tractor Co., Ltd. produces the 1LY series disc plows, which are matched with tractors through a three - point hitch and can be used for deep plowing of virgin land, wasteland and cultivated land. The plow discs are made of 65MM material. After heat treatment, they have high hardness, good elasticity and are not easy to deform. During operation, the plow discs rotate to cut and deeply plow the soil and weeds.

Inquiry

This disc plow has the following features:

It is not prone to clogging. It can cut off crop stems, rhizomes and weeds, and is not afraid of brick fragments.
When working, the discs rotate, resulting in low working resistance and strong soil - turning ability. It is suitable for plowing green manure fields, returning rice and wheat stubbles to the field, and working in farmland with overgrown weeds, standing stalks, high soil specific resistance, and fields with brick and stone fragments where the conditions are complex.
The whole machine has a compact structure. It is flexible in head - turning during work and transportation, and is easy to adjust, simple and durable.

Technical Parameters：

Technical Parameters of Disc Plows
Technical Parameters of Disc Plows

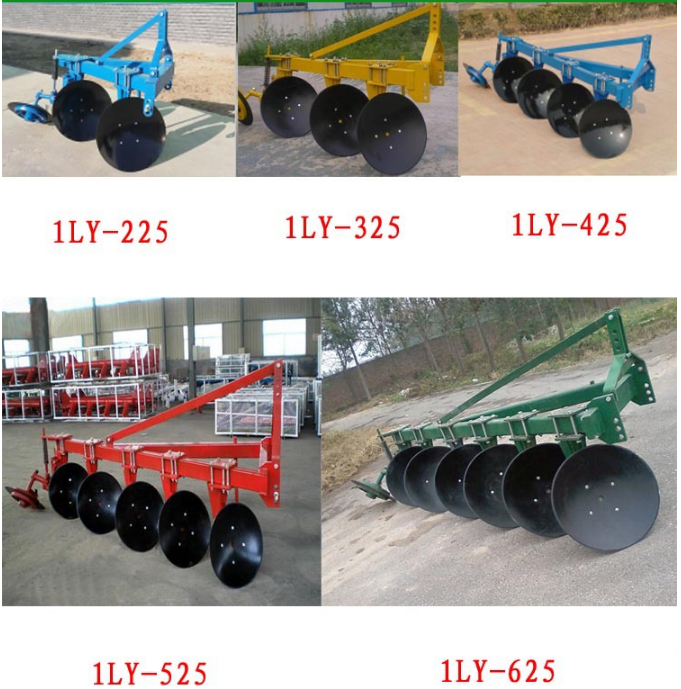

Model	1LY - 220	1LY - 320	1LY - 420	1LY - 225	1LY - 325	1LY - 425	1LY - 525	1LY - 625
Working Depth (mm)	200			250
Working Width (mm)	400	600	800	500	750	1000	1250	1500
Number of Plow Discs (ps)	2	3	4	2	3	4	5	6
Plow Disc Diameter (mm)	510			660
Total Machine Weight (kg)	140	190	240	300	350	420	510	640
Matching Horsepower (hp)	18	24 - 40	40	40 - 50	50 - 80	75 - 100	90 - 120	100 - 150
Connection Method	Three - point Hitch
